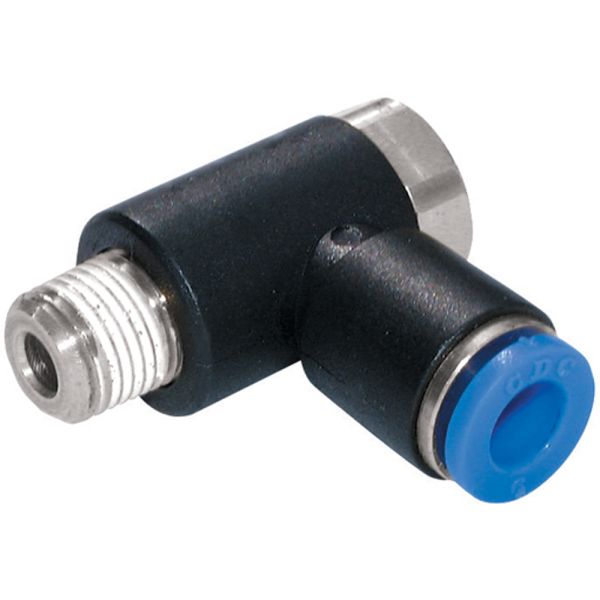

Banjo Coupling M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Metric NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | K (mm) |
| 366839 | 4 | 1/8 | 10.5 | 8 | 12 | 15.5 | 21.8 | 12 | 14.5 |
| 366840 | 6 | 1/8 | 13 | 8 | 12 | 15.6 | 23 | 12 | 14.5 |
| 366841 | 6 | 1/4 | 13 | 11 | 12 | 15.6 | 25.5 | 14 | 18.2 |
| 366842 | 8 | 1/8 | 14.5 | 8 | 12 | 18 | 24.6 | 12 | 14.5 |
| 366843 | 8 | 1/4 | 14.5 | 11 | 12 | 18 | 26.8 | 14 | 18.2 |
| 366844 | 8 | 3/8 | 14.5 | 12 | 15.4 | 18 | 28.8 | 11 | 22 |
| 366845 | 10 | 3/8 | 18 | 12 | 15.4 | 20 | 31.6 | 22 | 22 |
| 366847 | 12 | 1/4 | 21 | 11 | 12 | 21.4 | 31 | 22 | 18.2 |
| 366849 | 12 | 1/2 | 21 | 15 | 17.5 | 21.4 | 35.2 | 22 | 27.4 |
Â
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
