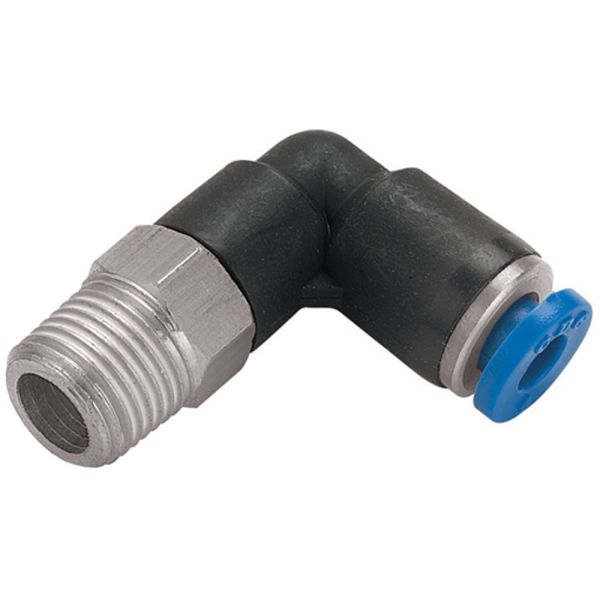

Stud Swivel Elbow 90° M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Metric NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) |
| 366729 | 4 | 1/8 | 10.5 | 8 | 25.5 | 15.5 | 17.5 | 11 |
| 366730 | 4 | 1/4 | 10.5 | 11 | 28.5 | 15.5 | 17.5 | 14 |
| 366731 | 6 | 1/8 | 13 | 8 | 28.5 | 15.6 | 20.5 | 12 |
| 366732 | 6 | 1/4 | 13 | 11 | 31 | 15.6 | 20.5 | 14 |
| 366733 | 6 | 3/8 | 13 | 12 | 32.5 | 15.6 | 20.5 | 17 |
| 366734 | 6 | 1/2 | 13 | 15 | 36 | 15.6 | 20.5 | 22 |
| 366735 | 8 | 1/8 | 14.5 | 8 | 30 | 18 | 22.5 | 14 |
| 366736 | 8 | 1/4 | 14.5 | 11 | 33 | 18 | 22.5 | 14 |
| 366737 | 8 | 3/8 | 14.5 | 12 | 34.5 | 18 | 22.5 | 17 |
| 366738 | 8 | 1/2 | 14.5 | 15 | 38 | 18 | 22.5 | 22 |
| 366739 | 10 | 1/8 | 18 | 8 | 33.7 | 20 | 27 | 17 |
| 366740 | 10 | 1/4 | 18 | 11 | 36.7 | 20 | 27 | 17 |
| 366741 | 10 | 3/8 | 18 | 12 | 37.7 | 20 | 27 | 17 |
| 366742 | 10 | 1/2 | 18 | 15 | 41.7 | 20 | 27 | 22 |
| 366743 | 12 | 1/4 | 21 | 11 | 39.2 | 21.4 | 28.4 | 22 |
| 366744 | 12 | 3/8 | 21 | 12 | 40.2 | 21.4 | 28.4 | 22 |
| 366745 | 12 | 1/2 | 21 | 15 | 43.7 | 21.4 | 28.4 | 22 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
