Stud Coupling M
Useful Information

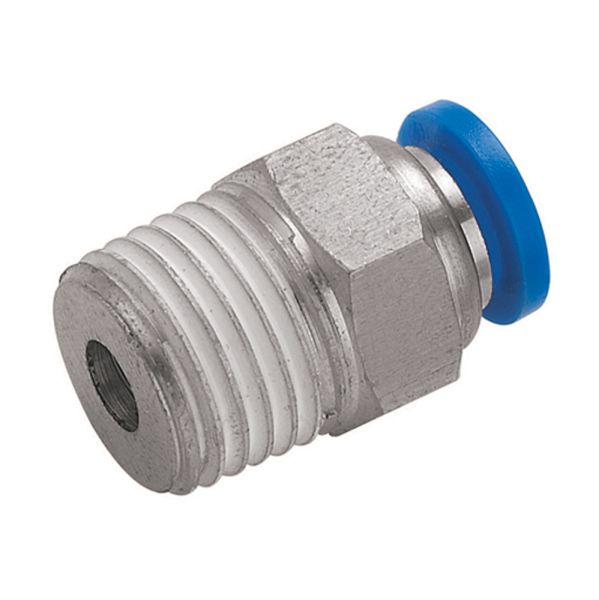

Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Metric NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R ( Thread) | P (mm) | A (mm) | B (mm) | C (mm) | H (mm) |
| 366696 | 4 | 1/8 | 9.5 | 8 | 21 | 16 | 11 |
| 366697 | 4 | 1/4 | 9.5 | 11 | 21.5 | 16 | 14 |
| 366698 | 4 | 3/8 | - | - | - | - | - |
| 366699 | 6 | 1/8 | 11.3 | 8 | 24 | 17 | 12 |
| 366700 | 6 | 1/4 | 1.3 | 11 | 23.5 | 17 | 14 |
| 366701 | 6 | 3/8 | 11.3 | 12 | 24.5 | 17 | 17 |
| 366702 | 8 | 1/8 | 13.2 | 8 | 26.5 | 18 | 14 |
| 366703 | 8 | 1/4 | 13.2 | 11 | 26 | 18 | 14 |
| 366704 | 8 | 3/8 | 13.2 | 12 | 24.5 | 18 | 17 |
| 366705 | 8 | 1/2 | 13.2 | 15 | 27.5 | 18 | 22 |
| 366706 | 10 | 1/8 | 15.8 | 8 | 30 | 20 | 17 |
| 366707 | 10 | 1/4 | 15.8 | 11 | 32 | 20 | 17 |
| 366708 | 10 | 3/8 | 15.8 | 12 | 28.5 | 20 | 17 |
| 366709 | 10 | 1/2 | 15.8 | 15 | 29.5 | 20 | 22 |
| 366710 | 12 | 1/4 | 19.6 | 11 | 31.5 | 20 | 22 |
| 366711 | 12 | 3/8 | 19.6 | 12 | 29.5 | 20 | 22 |
| 366712 | 12 | 1/2 | 19.6 | 15 | 28 | 20 | 22 |
Â
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
