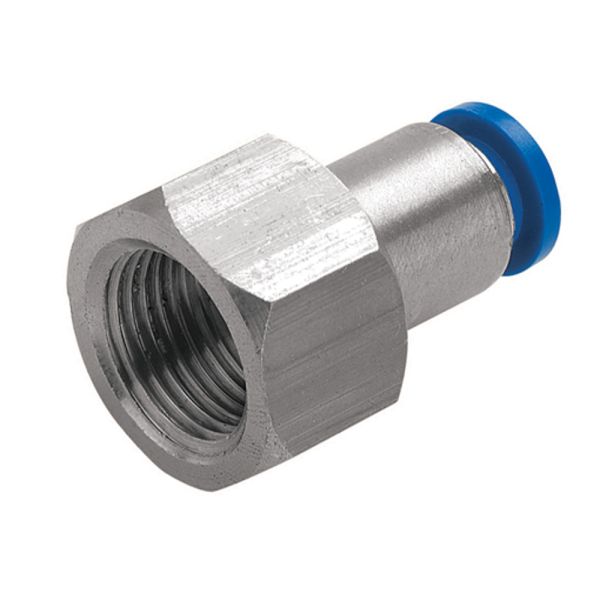

Stud Coupling F
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Metric NPT Female Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | G (mm) | H (mm) |
| 366713 | 4 | 1/8 | 11 | 9 | 26.5 | 16 | 11 | 12 |
| 366714 | 4 | 1/4 | 11 | 12 | 29 | 16 | 14 | 17 |
| 366715 | 6 | 1/8 | 13 | 9 | 28 | 17 | 11 | 14 |
| 366716 | 6 | 1/4 | 13 | 12 | 31 | 17 | 14 | 17 |
| 366717 | 6 | 3/8 | 13 | 13 | 32 | 17 | 15 | 22 |
| 366718 | 8 | 1/8 | 15 | 9 | 29.5 | 18 | 11 | 17 |
| 366719 | 8 | 1/4 | 15 | 12 | 31.5 | 18 | 14 | 17 |
| 366720 | 8 | 3/8 | 15 | 13 | 32 | 18 | 15 | 22 |
| 366721 | 8 | 1/2 | 15 | 16 | 37 | 18 | 18 | 25 |
| 366722 | 10 | 1/8 | 18 | 9 | 30.5 | 20 | 11 | 22 |
| 366723 | 10 | 1/4 | 18 | 12 | 33.5 | 20 | 14 | 22 |
| 366724 | 10 | 3/8 | 18 | 13 | 34.5 | 20 | 15 | 22 |
| 366725 | 10 | 1/2 | 18 | 16 | 38.5 | 20 | 18 | 25 |
| 366726 | 12 | 1/4 | 21 | 12 | 34.2 | 21 | 14 | 22 |
| 366727 | 12 | 3/8 | 21 | 13 | 36.7 | 21 | 15 | 22 |
| 366728 | 12 | 1/2 | 21 | 16 | 43.7 | 21 | 18 | 25 |
Â
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
