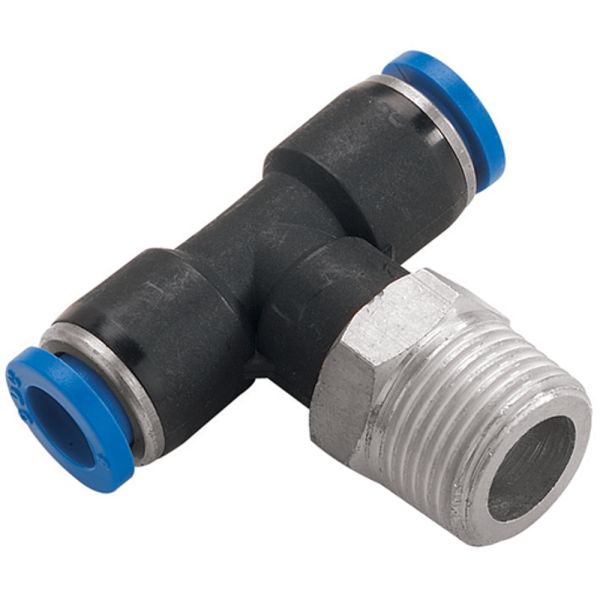

Swivel Tee 90° Branch M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickle Plated Brass
- Media: Air and Vacuum Only
- BSPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366229 | 4 | 1/8 | 10 | 7.5 | 25 | 15.5 | 17.5 | 8 | 10 | 3.2 |
| 366230 | 4 | 1/4 | 10 | 9 | 26.5 | 15.5 | 17.5 | 8 | 14 | 3.2 |
| 366231 | 6 | 1/8 | 12.8 | 7.5 | 27.5 | 15.6 | 19.5 | 9.5 | 12 | 3.2 |
| 366232 | 6 | 1/4 | 12.8 | 9 | 29 | 15.6 | 19.5 | 9.5 | 14 | 3.2 |
| 366233 | 6 | 3/8 | 12.8 | 11 | 31.5 | 15.6 | 19.5 | 9.5 | 17 | 3.2 |
| 366234 | 6 | 1/2 | 12.8 | 13 | 34 | 15.6 | 19.5 | 9.5 | 21 | 3.2 |
| 366235 | 8 | 1/8 | 13.8 | 7.5 | 29.5 | 18 | 23 | 9.5 | 14 | 3.2 |
| 366236 | 8 | 1/4 | 13.8 | 9 | 31 | 18 | 23 | 10.2 | 14 | 3.2 |
| 366237 | 8 | 3/8 | 13.8 | 11 | 33.5 | 18 | 23 | 10.2 | 17 | 3.2 |
| 366238 | 8 | 1/2 | 16.8 | 13 | 36 | 18 | 23 | 10.2 | 21 | 3.2 |
| 366239 | 10 | 1/8 | 16.8 | 7.5 | 33.2 | 19.3 | 26.3 | 10.2 | 17 | 3.2 |
| 366240 | 10 | 1/4 | 16.8 | 9 | 34.7 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366241 | 10 | 3/8 | 16.8 | 11 | 36.7 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366242 | 10 | 1/2 | 19.8 | 13 | 39.2 | 19.3 | 26.3 | 13 | 21 | 3.2 |
| 366243 | 12 | 1/4 | 19.8 | 9 | 35.5 | 21 | 27.5 | 13 | 19 | 3.2 |
| 366244 | 12 | 3/8 | 19.8 | 11 | 38 | 21 | 27.5 | 13 | 19 | 3.2 |
| 366245 | 12 | 1/2 | 19.8 | 13 | 40 | 21 | 27.5 | 13 | 21 | 3.2 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Tapered fittings are precoated with Teflon sealant.
Nickel-plated brass fittings ensure long product life.
