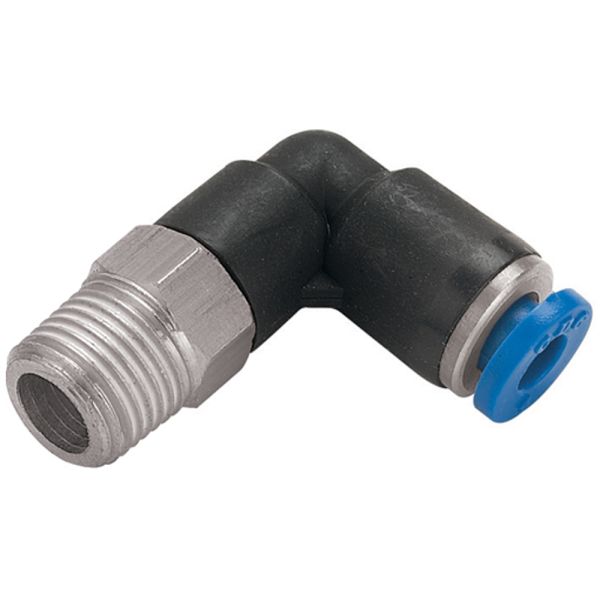

Stud Swivel Elbow 90° M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickle Plated Brass
- Media: Air and Vacuum Only
- BSPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366203 | 4 | 10 | 1/8 | 7.5 | 25 | 15.5 | 17.5 | 8 | 10 | 3.2 |
| 366204 | 4 | 10 | 1/4 | 9 | 26.5 | 15.5 | 17.5 | 8 | 14 | 3.2 |
| 366205 | 6 | 12.8 | 1/8 | 7.5 | 27.5 | 15.6 | 20.5 | 9.5 | 12 | 3.2 |
| 366206 | 6 | 12.8 | 1/4 | 9 | 29 | 15.6 | 20.5 | 9.5 | 14 | 3.2 |
| 366207 | 6 | 12.8 | 3/8 | 11 | 31.5 | 15.6 | 20.5 | 9.5 | 17 | 3.2 |
| 366208 | 6 | 12.8 | 1/2 | 13 | 34 | 15.6 | 20.5 | 9.5 | 21 | 3.2 |
| 366209 | 8 | 13.8 | 1/8 | 7.5 | 29.5 | 18 | 22.5 | 10.2 | 14 | 3.2 |
| 366210 | 8 | 13.8 | 1/4 | 9 | 31 | 18 | 22.5 | 10.2 | 14 | 3.2 |
| 366211 | 8 | 13.8 | 3/8 | 11 | 33.5 | 18 | 22.5 | 10.2 | 17 | 3.2 |
| 366212 | 8 | 13.8 | 1/2 | 13 | 36 | 19 | 22.5 | 10.2 | 21 | 3.2 |
| 366213 | 10 | 16.8 | 1/8 | 7.5 | 33.2 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366214 | 10 | 16.8 | 1/4 | 9 | 34.7 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366215 | 10 | 16.8 | 3/8 | 11 | 36.7 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366216 | 10 | 16.8 | 1/2 | 13 | 39.2 | 19.3 | 26.3 | 13 | 21 | 3.2 |
| 366217 | 12 | 19.8 | 1/4 | 9 | 35.5 | 21 | 27.8 | 13 | 19 | 3.2 |
| 366218 | 12 | 19.8 | 3/8 | 11 | 38 | 21 | 27.8 | 13 | 19 | 3.2 |
| 366219 | 12 | - | 1/2 | - | - | - | - | - | - | - |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Tapered fittings are precoated with Teflon sealant.
Nickel-plated brass fittings ensure long product life.
