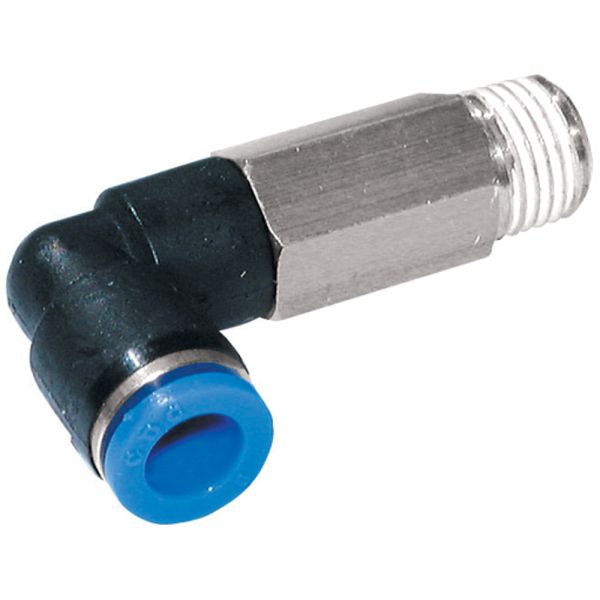

Stud Swivel Elbow 90° Extended M

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Nickle Plated Brass
  • Media: Air and Vacuum Only
  • BSPT Male Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

male stud swivel elbows extended bspt

Product Code D (mm) D1 (mm) R (Thread) A (mm) B (mm) C (mm) E (mm) F (mm) H (mm) d (mm)
366220 4 10 1/8 7.5 35.5 15.5 17.5 8 10 3.2
366221 6 12.8 1/8 7.5 40.5 15.6 20.5 9.5 12 3.2
366222 6 12.8 1/4 9 43.5 15.6 20.5 9.5 14 3.2
366223 8 13.8 1/8 7.5 44 18 22.5 10.2 14 3.2
366224 8 13.8 1/4 9 45.5 18 22.5 10.2 14 3.2
366225 10 16.8 1/8 7.5 51.2 19.3 26.3 13 17 3.2
366226 10 16.8 1/4 9 52.7 19.3 26.3 13 17 3.2
366227 12 19.8 1/4 9 55.5 21 27.8 13 19 3.2
366228 12 19.8 3/8 11 58 21 27.8 13 19 3.2



Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Tapered fittings are precoated with Teflon sealant.

Nickel-plated brass fittings ensure long product life.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
366220KM Male Stud Swivel Elbow Extended BSPT 4mm x 1/8" £4.04 50%
£2.02
366221KM Male Stud Swivel Elbow Extended BSPT 6mm x 1/8" £4.08 50%
£2.04
366222KM Male Stud Swivel Elbow Extended BSPT 6mm x 1/4" £2.00 50%
£1.00
366223KM Male Stud Swivel Elbow Extended BSPT 8mm x 1/8" £3.72 50%
£1.86
366224KM Male Stud Swivel Elbow Extended BSPT 8mm x 1/4" £4.24 50%
£2.12
366225KM Male Stud Swivel Elbow Extended BSPT 10mm x 1/8" £6.08 50%
£3.04
366226KM Male Stud Swivel Elbow Extended BSPT 10mm x 1/4" £5.44 50%
£2.72
366227KM Male Stud Swivel Elbow Extended BSPT 12mm x 1/4" £9.32 50%
£4.66
366228KM Male Stud Swivel Elbow Extended BSPT 12mm x 3/8" £8.24 50%
£4.12
