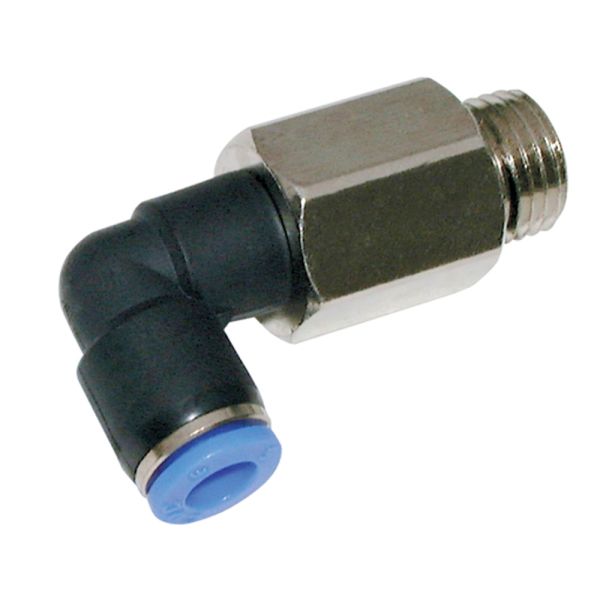

Kelm Stud Swivel Elbow 90° Extended M

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Nickle Plated Brass
  • Media: Air and Vacuum Only
  • BSPP Male Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

male stud swivel elbow extended bspp

Product Code D (mm) D1 (mm) R (Thread) A (mm) B (mm) C (mm) E (mm) F (mm) H1 (mm) d (mm)
366400 4 10 1/8 5.5 34.1 15.5 17.5 8 14 3.2
366401 4 10 1/4 6 35 15.5 17.5 8 17 3.2
366402 6 12.8 1/8 5.5 40 15.6 20.5 9.5 14 3.2
366403 6 12.8 1/4 6 42 15.6 20.5 9.5 17 3.2
366404 6 12.8 3/8 6.5 43.5 15.6 20.5 9.5 21 3.2
366405 8 13.8 1/8 5.5 44 18 22.5 10.2 14 3.2
366406 8 13.8 1/4 6 44 18 22.5 10.2 14 3.2
366407 8 13.8 3/8 6.5 45.5 18 22.5 10.2 17 3.2
366408 10 16.8 1/8 5.5 51.7 19.3 26.3 13 17 3.2
366409 10 16.8 1/4 6 52.2 19.3 26.3 13 17 3.2
366410 10 16.8 3/8 6.5 52.2 19.3 26.3 13 21 3.2
366411 12 19.8 3/8 6.5 54.5 21 27.8 13 21 3.2



Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Nickel-plated brass fittings ensure long product life.
