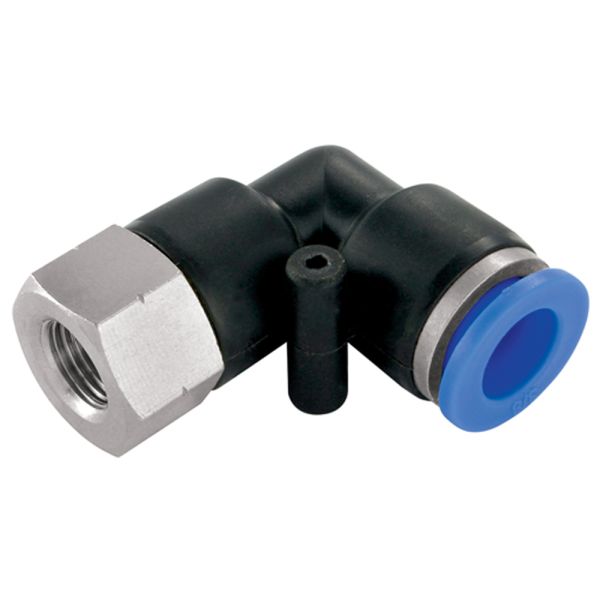

Swivel Elbow 90° F

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Nickel Plated Brass
  • Media: Air and Vacuum Only
  • NPT Female Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

female stud swivel elbow npt

Product Code D (mm) D1 (mm) R (Thread) A (mm) B (mm) C (mm) E (mm) F (mm) H (mm) G (mm)
366660 1/8 10 1/8 9 24.5 15.5 17.5 8 1/2 11
366662 5/32 10 1/8 9 24.5 15.5 17.5 8 1/2 11
366663 5/32 10 1/4 12 25.5 15.5 17.5 8 11/16 14
366664 3/16 12.8 1/8 9 27 15.6 20.5 9.5 1/2 11
366665 3/16 12.8 1/4 12 30 15.6 20.5 9.5 11/16 14
366666 1/4 12.8 1/8 9 27 15.6 20.5 9.5 1/2 11
366667 1/4 12.8 1/4 12 30 15.6 20.5 9.5 11/16 14
366668 1/4 12.8 3/8 13 31 15.6 20.5 9.5 7/8 15
366669 5/16 13.8 1/8 9 28.7 18 22.5 10.2 9/16 11
366670 5/16 13.8 1/4 12 29.7 18 22.5 10.2 11/16 14
366671 5/16 13.8 3/8 13 32.7 18 22.5 10.2 7/8 15
366672 5/16 13.8 1/2 16 35.7 18 22.5 10.2 1 18
366673 3/8 16.8 1/8 9 32.2 19.3 26.3 13 11/16 11
366674 3/8 16.8 1/4 12 33.2 19.3 26.3 13 11/16 14
366675 3/8 16.8 3/8 13 34.2 19.3 26.3 13 7/8 15
366676 3/8 16.8 1/2 16 39.2 19.3 26.3 13 1 18
366677 1/2 20.5 1/4 12 37.2 21.4 28.4 13.6 7/8 14
366678 1/2 20.5 3/8 13 38.2 21.4 28.4 13.6 7/8 15
366679 1/2 20.5 1/2 16 41.2 21.4 28.4 13.6 1 18



Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Nickel-plated brass fittings ensure long product life.

Tapered fittings are precoated with Teflon sealant.
