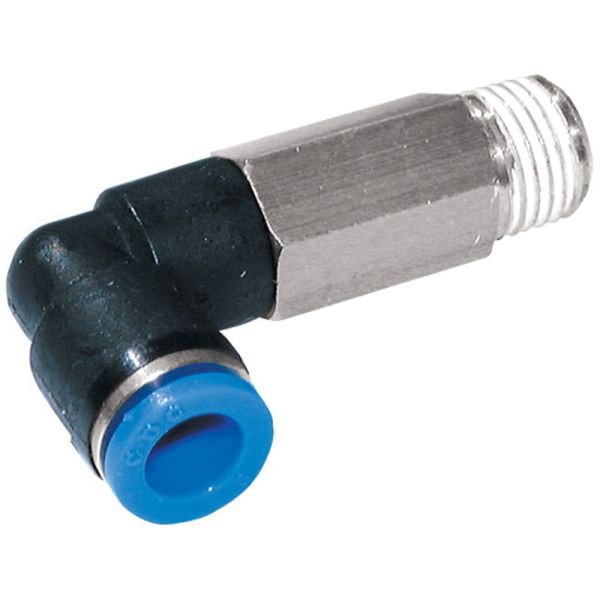

Stud Swivel Elbow 90° Extended M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366640 | 1/8 | 10 | 1/8 | 8 | 36 | 15.5 | 17.5 | 8 | 7/16 | 3.2 |
| 366641 | 1/8 | 10 | 1/4 | 11 | 39 | 15.5 | 17.5 | 8 | 9/16 | 3.2 |
| 366643 | 5/32 | 10 | 1/4 | 11 | 39 | 15.5 | 17.5 | 8 | 9/16 | 3.2 |
| 366644 | 3/16 | 12.8 | 1/8 | 8 | 41.5 | 15.6 | 20.5 | 9.5 | 1/2 | 3.2 |
| 366645 | 3/16 | 12.8 | 1/4 | 11 | 45.5 | 15.6 | 20.5 | 9.5 | 9/16 | 3.2 |
| 366646 | 3/16 | 12.8 | 3/8 | 12 | 47 | 15.6 | 20.5 | 9.5 | 11/16 | 3.2 |
| 366647 | 1/4 | 12.8 | 1/8 | 8 | 41.5 | 15.6 | 20.5 | 9.5 | 1/2 | 3.2 |
| 366648 | 1/4 | 12.8 | 1/4 | 11 | 45.5 | 15.6 | 20.5 | 9.5 | 9/16 | 3.2 |
| 366649 | 1/4 | 12.8 | 3/8 | 12 | 47 | 15.6 | 20.5 | 9.5 | 11/16 | 3.2 |
| 366650 | 5/16 | 13.8 | 1/8 | 8 | 44.2 | 18 | 22.5 | 10.2 | 9/16 | 3.2 |
| 366651 | 5/16 | 13.8 | 1/4 | 11 | 47.2 | 18 | 22.5 | 10.2 | 9/16 | 3.2 |
| 366653 | 3/8 | 16.8 | 1/8 | 8 | 51.7 | 19.3 | 26.3 | 13 | 11/16 | 3.2 |
| 366654 | 3/8 | 16.8 | 1/4 | 11 | 54.7 | 19.3 | 26.3 | 13 | 11/16 | 3.2 |
| 366655 | 3/8 | 16.8 | 3/8 | 12 | 55.7 | 19.3 | 26.3 | 13 | 11/16 | 3.2 |
| 366656 | 3/8 | 16.8 | 1/2 | 15 | 59.7 | 19.3 | 26.3 | 13 | 7/8 | 3.2 |
| 366657 | 1/2 | 20.5 | 1/4 | 11 | 59.7 | 21.4 | 28.4 | 13.6 | 7/8 | 3.2 |
| 366659 | 1/2 | 20.5 | 1/2 | 15 | 64.2 | 21.4 | 28.4 | 13.6 | 7/8 | 3.2 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
