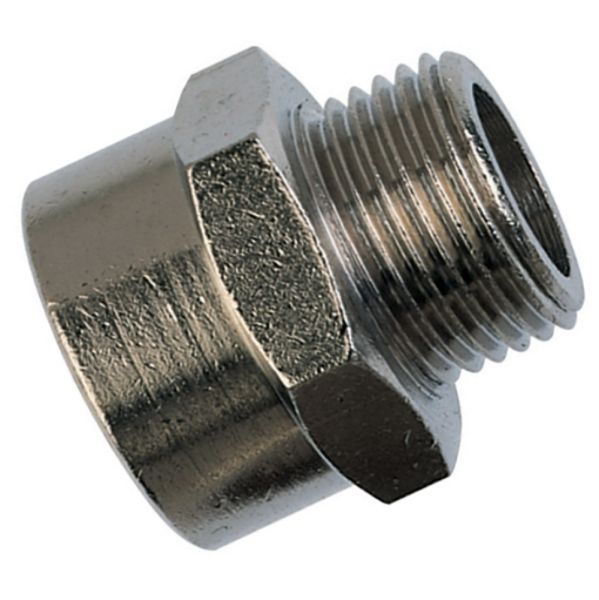

Adaptor M x F
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Kelm
- Material: Nickel Plated Brass
- BSPP Male x BSPP Female Thread
 |
Product Code | A (inch) | A1 (inch) | B | L | CH |
| 369449 | 1/8 | 1/8 | 6 | 17 | 14 | |
| 369450 | 1/8 | 1/4 | 6 | 20.5 | 17 | |
| 369451 | 1/8 | 3/8 | 6 | 21.5 | 22 | |
| 369452 | 1/4 | 1/4 | 8 | 22.5 | 17 | |
| 369453 | 1/4 | 3/8 | 8 | 23.5 | 22 | |
| 369454 | 1/4 | 1/2 | 8 | 26.5 | 26 | |
| 369455 | 3/8 | 3/8 | 9 | 24.5 | 22 | |
| 369456 | 3/8 | 1/2 | 9 | 27.5 | 26 | |
| 369457 | 3/8 | 3/4 | 9 | 25.5 | 30 | |
| 369458 | 1/2 | 1/2 | 10 | 28.5 | 26 | |
| 369459 | 1/2 | 3/4 | 10 | 27 | 30 | |
| 369460 | 1/2 | 1 | 11 | 28.5 | 38 | |
| 369461 | 3/4 | 3/4 | 11.5 | 28 | 32 | |
| 369462 | 3/4 | 1 | 11 | 28 | 38 | |
| 369463 | 1 | 1 | 13 | 31 | 38 |
Useful Info:
Designed to be used in conjunction with other Kelm Pneumatic products.
Nickel-plated brass ensures long product life.
