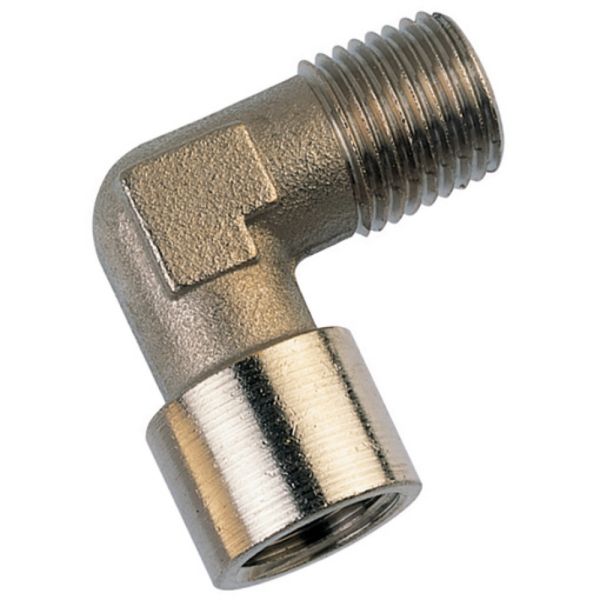

Elbow 90° M BSPT x F BSPP

Key Features / Tech Specs / Dimensions:

• Manufacturer: Kelm
• Material: Nickel Plated Brass
• BSPT Male x BSPP Female Thread

	Product Code	A (inch)	B	B1	C	L	CH
	369542	1/8	7.5	8.5	21	18	11
	369543	1/4	11	11	25.5	24	13
	369544	3/8	11.5	12	28	27	17
	369545	1/2	14	15	32	29.5	20
	369546	3/4	14.5	16.5	36.5	32	27
	369547	1	16	19	45	39	30

Useful Info:

Designed to be used in conjunction with other Kelm Pneumatic products.

Nickel-plated brass ensures long product life.
