Miniature Push-in Fittings

Key Features / Tech Specs:

• Brass and black Acetal
• Miniature
• Metric tube connection
• Imperial and metric thread
• Quick connect/disconnect
• Re-usable
• No tools required
• For use with compressed air/pneumatic applications

Useful Info:

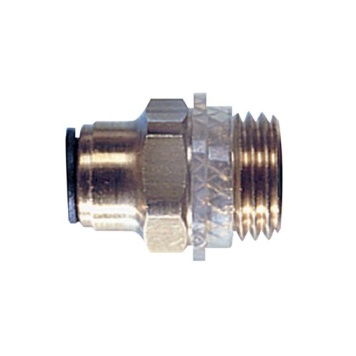

Amongst our range of brass fittings are push-in, stem and bulkhead adaptors in a wide range of sizes. The tube part of the fitting is metric but the threaded end is available in both metric and imperial including Superthread as shown. The Superthread fittings allow for connection to BSP, BSPT, NPT, PF and PT threaded connectors.

The working temperature of these fittings is between -20°C and 70°C with a maximum operating pressure of 10 bar (at 20°C). The collets on these connectors are produced in acetal copolymer and are complete with stainless steel teeth, while the internal O-ring is manufactured from nitrile rubber.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
