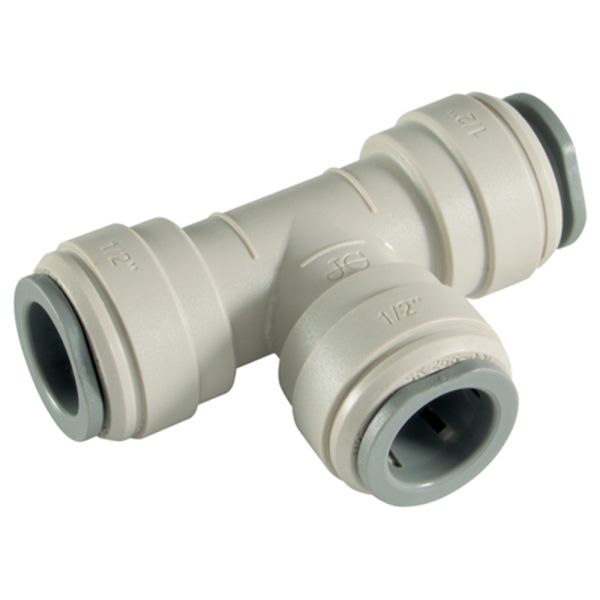

Tee
Useful Information
Key Features / Tech Specs:
- Manufactured by John Guest
- Imperial tube x tube tee
- Pressure rated to 16 bar
- Maximum temperature: 70°C
- FDA approved
Useful Info:
| Product Code | To Suit Hose O.D (inch) | Max. Bar up to 20°C | Max. Bar at 70°C |
| 381912 | 5/32 | 16 | 10 |
| 381913 | 3/16 | 16 | 10 |
| 381914 | 1/4 | 16 | 10 |
| 381915 | 5/16 | 16 | 10 |
| 381916 | 3/8 | 10 | 7 |
| 381917 | 1/2 | 10 | 7 |
These tees have push-in tube ends suited to tubing with 5/32" to 1/2" outer diameter that allow for tubing to be added at a 90° angle off of the branch whilst also continuing on the run.
Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
