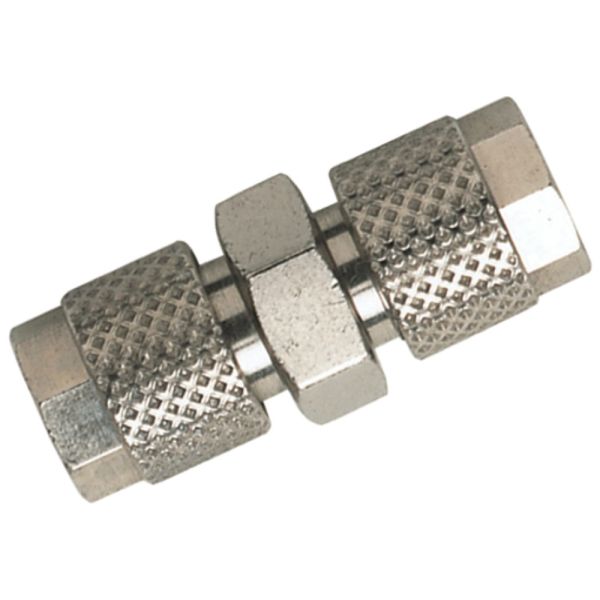

Coupling

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Body Material: Nickel Plated Brass
  • Temperature: -20° - +80°
  • Max. Pressure 15 bar


Product Code Tube Tube L CH
370219 4/2.7 4/2.7 27.5 8
370220 5/3 5/3 31.7 8
370222 6/4 6/4 32.2 12
370224 8/6 8/6 34.8 12
370226 10/8 10/8 39 14
370227 12/10 12/10 43 17
370228 15/12.5 15/12.5 47 22



Useful Info:

General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.

Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
370219KM BQFF Straight Connector Tube x Tube 4/2.7mm x 4/2.7mm £7.20 50%
£3.60
370220KM BQFF Straight Connector Tube x Tube 5/3mm x 5/3mm £7.48 50%
£3.74
370222KM BQFF Straight Connector Tube x Tube 6/4mm x 6/4mm £6.60 50%
£3.30
370224KM BQFF Straight Connector Tube x Tube 8/6mm x 8/6mm £7.72 50%
£3.86
370226KM BQFF Straight Connector Tube x Tube 10/8mm x 10/8mm £9.72 50%
£4.86
370227KM BQFF Straight Connector Tube x Tube 12/10mm x 12/10mm £15.80 50%
£7.90
370228KM BQFF Straight Connector Tube x Tube 15/12.5mm x 15/12.5mm £21.80 50%
£10.90
