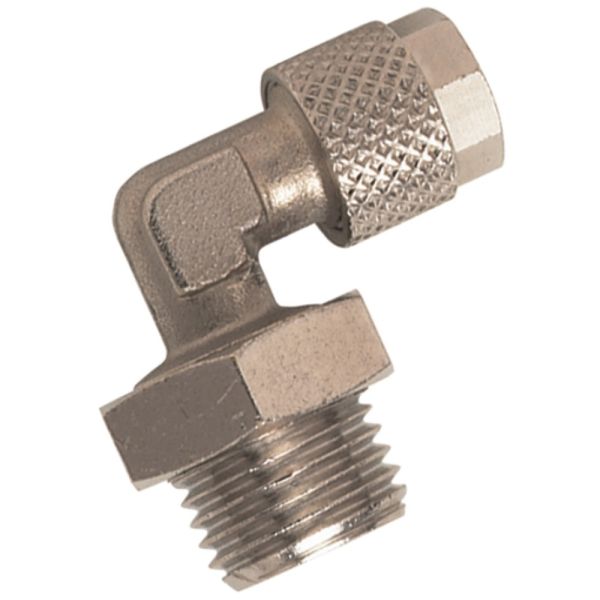

Swivel Stud Elbow 90° M

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Body Material: Nickel Plated Brass
  • Temperature: -20° - +80°
  • Max. Pressure 15 bar

KM-BQF-Swivel-Male-Studs-Elbow-BSPT

Product Code Tube A (inch) B L1 L2 CH CH2
370318 6/4 1/8 7.5 20.6 22.5 8 13
370319 6/4 1/4 11 20.6 28 8 15
370320 8/6 1/8 7.5 21.6 22.5 9 13
370321 8/6 1/4 11 23.1 28.5 9 15
370322 10/8 1/4 11 24 30.5 11 15



Useful Info:

Swivel Fittings should not be used as revolving joints.

General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.

Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
