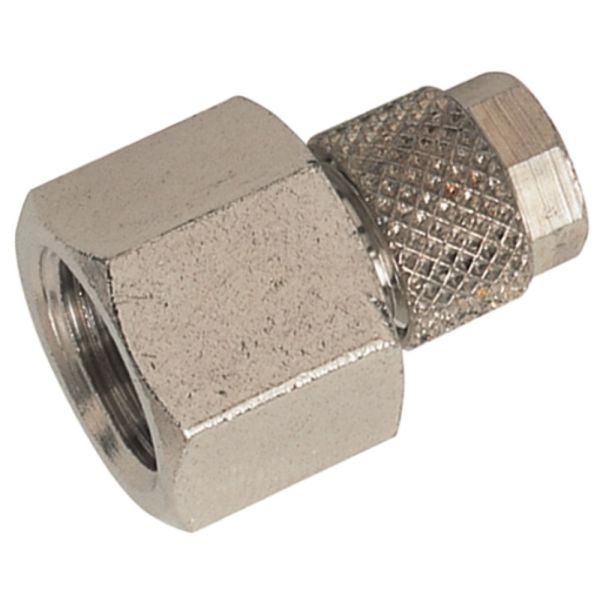

Stud F

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Body Material: Nickel Plated Brass
  • Temperature: -20° - +80°
  • Max. Pressure 15 bar

KM-BQF-Female-Studs

Product Code Tube A (inch) B L CH
370234 6/4 1/8 8.5 23.3 14
370235 6/4 1/4 11 27 17
370236 6/4 3/8 11.5 28 22
370237 8/6 1/8 8 24.7 14
370238 8/6 1/4 11 28.7 17
370239 8/6 3/8 11.5 29.2 22
370240 8/6 1/2 15.5 33 24
370241 10/8 1/4 11 30.5 17
370242 10/8 3/8 11.5 31 22
370243 10/8 1/2 15.5 34.5 24
370244 12/10 3/8 11.5 32.5 22



Useful Info:

General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.

Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
370236KM BQFF Female Stud BSPP 6/4mm x 1/8" £4.80 50%
£2.40
370237KM BQFF Female Stud BSPP 6/4mm x 1/4" £5.80 50%
£2.90
370238KM BQFF Female Stud BSPP 6/4mm x 3/8" £8.40 50%
£4.20
370239KM BQFF Female Stud BSPP 8/6mm x 1/8" £4.92 50%
£2.46
370240KM BQFF Female Stud BSPP 8/6mm x 1/4" £5.84 50%
£2.92
370241KM BQFF Female Stud BSPP 8/6mm x 3/8" £8.72 50%
£4.36
370242KM BQFF Female Stud BSPP 8/6mm x 1/2" £9.84 50%
£4.92
370243KM BQFF Female Stud BSPP 10/8mm x 1/4" £6.60 50%
£3.30
370244KM BQFF Female Stud BSPP 10/8mm x 3/8" £9.12 50%
£4.56
370245KM BQFF Female Stud BSPP 10/8mm x 1/2" £11.60 50%
£5.80
370246KM BQFF Female Stud BSPP 12/10mm x 3/8" £13.08 50%
£6.54
