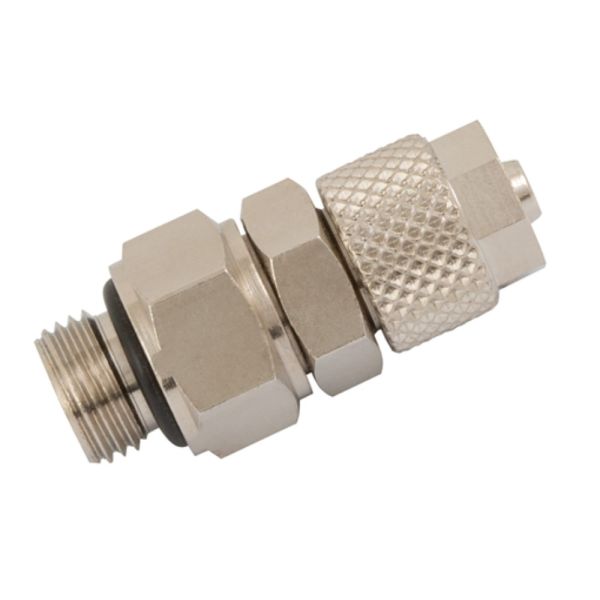

Swivel Stud Coupling M

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Body Material: Nickel Plated Brass
  • O-Ring Material: NBR70
  • Temperature: -20° - +80°
  • Max. Pressure 15 bar

KM-BQF-Swivel-Male-Studs-BSPP

Product Code Tube A (inch) B L CH1 CH2
370214 6/4 1/8 6 34 12 13
370215 6/4 1/4 8 38 14 16
370216 8/6 1/8 6 34 12 13
370217 8/6 1/4 8 38 14 16
370218 10/8 1/4 8 39 14 16



Useful Info:

Swivel Fittings should not be used as revolving joints.

General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.

Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
370214KM BQFF Swivel Male Stud BSPP 6/4mm x 1/8" £8.48 50%
£4.24
370215KM BQFF Swivel Male Stud BSPP 6/4mm x 1/4" £9.16 50%
£4.58
370216KM BQFF Swivel Male Stud BSPP 8/6mm x 1/8" £9.00 50%
£4.50
370217KM BQFF Swivel Male Stud BSPP 8/6mm x 1/4" £9.88 50%
£4.94
370218KM BQFF Swivel Male Stud BSPP 10/8mm x 1/4" £11.16 50%
£5.58
