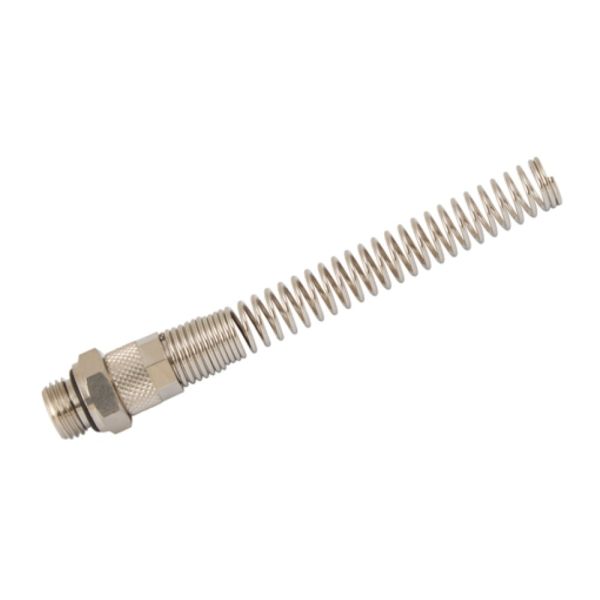

Stud M with Spring Guard

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Body Material: Nickel Plated Brass
  • O-Ring Material: NBR70
  • Temperature: -20° - +80°
  • Max. Pressure 15 bar

KM-BQF-Male-Studs-Spring-Guards-BSPP

Product Code Tube A (inch) B L CH
370264 6/4 1/8 6 109 13
370265 6/4 1/4 8 111 16
370266 6/4 1/2 10 114 24
370267 8/6 1/4 8 116.5 16
370268 8/6 1/2 10 119.5 24
370269 10/8 3/8 9 125.5 19
370270 12/10 3/8 9 133 19



Useful Info:

General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.

Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
370264KM BQFF Male Stud Spring Guard BSPP 6/4mm x 1/8" £7.88 50%
£3.94
370265KM BQFF Male Stud Spring Guard BSPP 6/4mm x 1/4" £9.00 50%
£4.50
370266KM BQFF Male Stud Spring Guard BSPP 6/4mm x 1/2" £9.92 50%
£4.96
370267KM BQFF Male Stud Spring Guard BSPP 8/6mm x 1/4" £9.00 50%
£4.50
370269KM BQFF Male Stud Spring Guard BSPP 10/8mm x 3/8" £11.16 50%
£5.58
370270KM BQFF Male Stud Spring Guard BSPP 12/10mm x 3/8" £14.36 50%
£7.18
