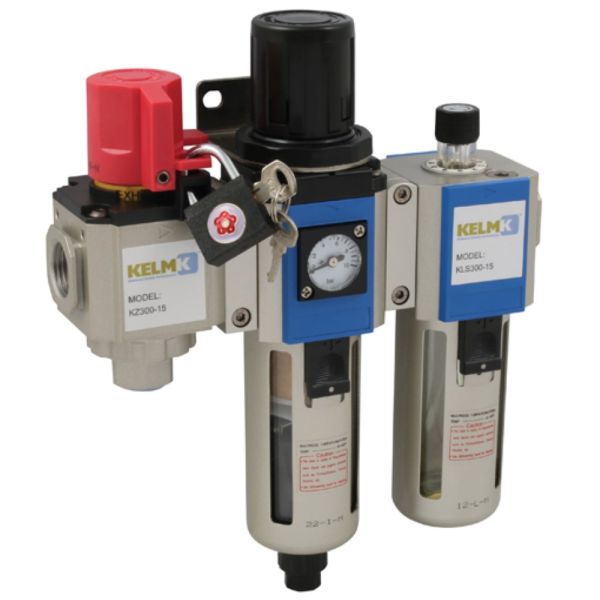

Kelm Wall Mounted Air Service Units

Key Features / Tech Specs:

• Manufactured by Kelm
• Temperature Range -5°C - 60°C
• Max. Pressure 10 bar
• 40 Micron filter element fitted as standard (5 Micron filter available)
• BSPP Thread type
• Compressed Air Only

Product Code	A	B	C	D (Inch)	E (Inch)	F	G	H	I	J	K
372143	72	41.5	70	1/2	1/8	M40 x 1.5	124	143	6.5	9	225.5
372144	72	41.5	70	1/2	1/8	M40 x 1.5	124	143	6.5	9	225.5
372145	85.5	50	80	1/2	1/4	M55 x 2.0	164	165.5	8.5	12	269.5
372146	85.5	50	80	1/2	1/4	M55 x 2.0	164	165.5	8.5	12	269.5

Product Code	A	B	C	D (Inch)	E	F	G	H	I	J	K	L	R (Inch)
372143	55	60	41	1/2	53.4	40	8	6.5	27	46	112.5	56.5	3/8
372144	55	60	41	1/2	53.4	40	8	6.5	27	46	112.5	56.5	3/8
372145	65	75	50	1/2	64	55	11	8.5	33.5	58.5	134	66	1/2
372146	65	75	50	1/2	64	55	11	8.5	33.5	58.5	134	66	1/2



Useful Info:

A wall mounted unit, perfect for saving space.

Supplied with a 10 bar gauge.

Be sure to check all products are undamaged and free from debris before installation.

Downstream air pressure is vented through the exhaust port when the valve is locked in it’s ‘OFF’ position.

The valve meets the OSHA standard (Occupational Safety & Health Administration).

Padlock and mounting bracket supplied with unit.

Check for correct flow direction and thread type on unit.
