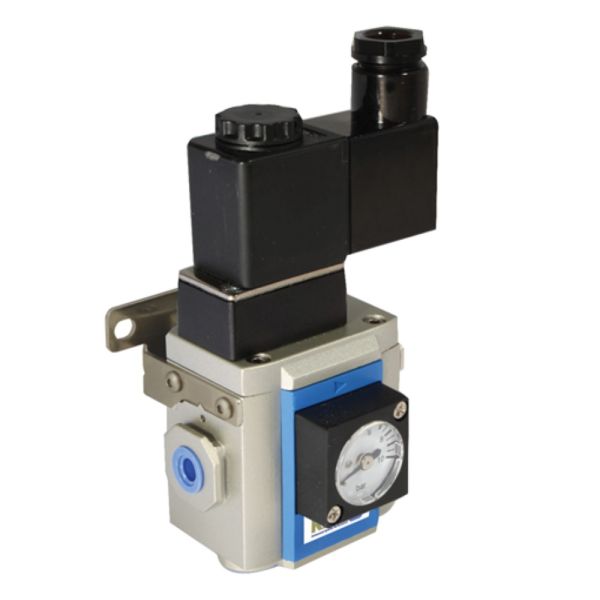

Kelm Soft Start Solenoid Valve
Useful Information
Key Features / Tech Specs:
- Manufactured by Kelm
- Temperature Range -20°C - 70°C
- Max. Pressure 9 bar
- Solenoid Voltage 24VDC
| Series | A (Inch) | B | C | D | E | F | G | H | I | J | K | R (Inch) |
| 200 | 1/8 - 1/4 | 24.5 | 30.5 | 30 | 123.5 | 57 | 5.5 | 8 | 80 | 67 | 59 | 1/4 |
| 300 | 1/4 - 3/8 - 1/2 | 31.5 | 34.5 | 34 | 131 | 62.5 | 6.5 | 8 | 95 | 82 | 74 | 3/8 |
| 400 | 3/8 - 1/2 | 40.5 | 39 | 40.5 | 142.5 | 80 | 8.5 | 11 | 120 | 102 | 90 | 1/2 |
Useful Info:
Soft Start Valves provide safety for operators and machinery by introducing pressure in pneumatic systems gradually.
Unit includes 10 bar pressure gauge and mounting bracket.
Exhaust port provides relief for excess pressure upon start up and can be used with our Kelm silencer range.
Exhaust port provides relief for excess pressure upon start up and can be used with our Kelm silencer range. Kelm Silencers
