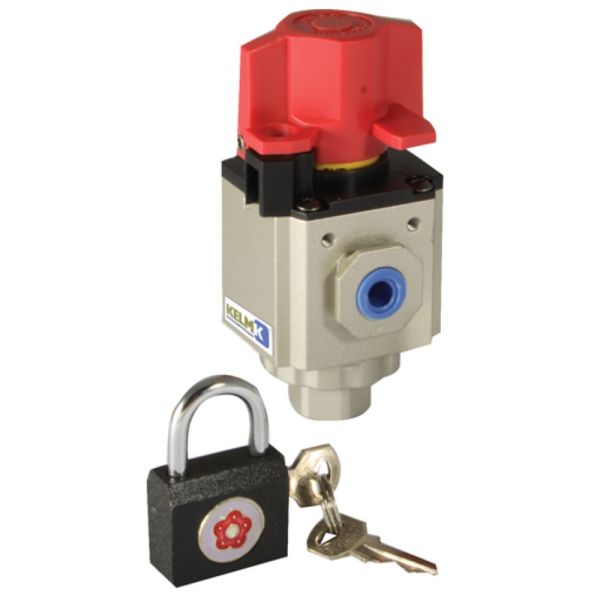

Kelm 3/2 Shut Off Valve
Useful Information
Key Features / Tech Specs:
- Manufactured by Kelm
- Temperature Range -20°C - 70°C
- Max. Pressure 9 bar
- Manually Actuated Valve 3/2
| Series | A | B | C | D (Inch) | E | F | G | H | I | J | K | L | R |
| 200 | 42 | 47 | 30 | 1/8 - 1/4 | 40 | 27 | 8.5 | 5.5 | 23 | 36.5 | 89 | 42.5 | 1/4 |
| 300 | 55 | 60 | 41 | 1/4 - 3/8 - 1/2 | 53.4 | 40 | 8 | 6.5 | 27 | 46 | 112.5 | 56.5 | 3/8 |
| 400 | 65 | 75 | 50 | 3/8 - 1/2 | 64 | 55 | 11 | 8.5 | 33.5 | 58.5 | 134 | 66 | 1/2 |
Useful Info:
These Valves meet the OSHA standard (Occupational Safety & Health Administration).
These lockable Shut Off Valves prevent air from passing through a system unintentionally and include an exhaust port to prevent pressure build up.
Exhaust port provides relief for excess pressure upon start up and can be used with our Kelm silencer range. Kelm Silencers
Padlock set and mounting bracket included with unit.
