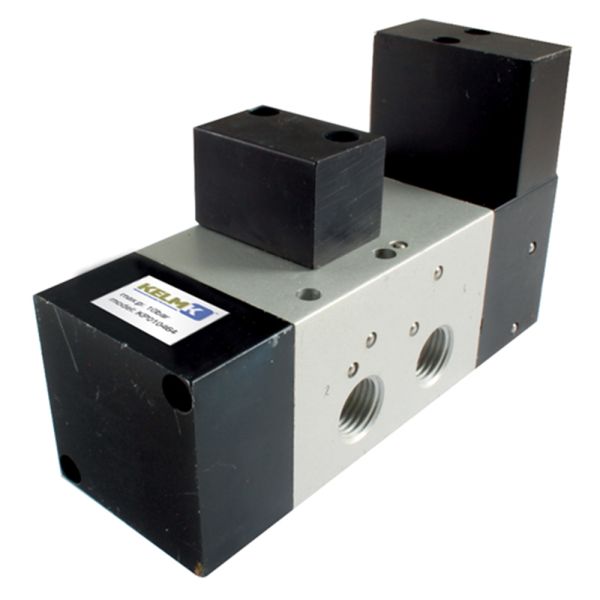

Kelm Pneumatically Piloted Oscillating Valve

Key Features / Tech Specs:

• Manufactured by KELM
• 1/4" port
• Material: Aluminium body, NBR seals
• Working pressure: 30 to 145psi
• Actuating pressure: 45 to 145psi
• Operating temperature: 0°C to 60°C
• Time regulating range: 0-15 seconds
•

Useful Info:

The Pneumatically Piloted Oscillating valve offers a high-flow rate that has two adjustable screws to control the dwell time. This valve requires a constant pilot signal at X, which can be independent of the pressure to port 1.

The adjustable screw ports are 1/4" BSPP threaded.

These valves are manufactured from aluminium with brass OT58 internal components, NBR rubber seals and a stainless steel spring.

The air is to be filtered by 50µm filter element.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
