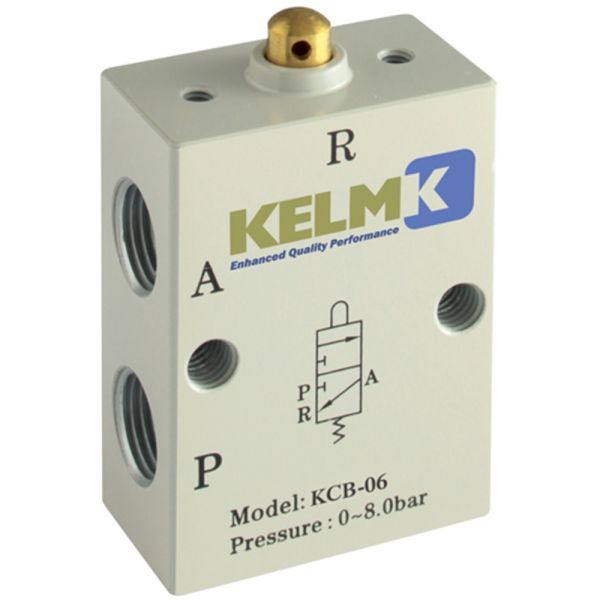

Kelm Plunger BSPP

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by KELM
  • Material: Aluminium alloy body, NBR seals
  • Max. Pressure: 8 bar
  • Operating Temperature: -20°C to 70°C
  • 1/8" BSPP thread
  • 3/2 Way
  • basic-symbol
    • A - Outlet Port
    • P - Air Input
    • R - Exhaust Port

plunger-valve-bspp-diagram


A B C D E F G H I J
23 30 20.5 41 47 M5 x 0.8 16.5 11.5 17.5 1/8"



Useful Info:

This plunger valve is complete with BSPP metric thread with an 8.0mm² orifice and a Cv value of 0.45. It is used for the mechanical control of air flow within pneumatic systems. The air is to be filtered by 40µm filter element.

Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 8 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.

These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
378651KM Plunger 3/2 Way Valve BSPP 1/8" £56.08 50%
£28.04
