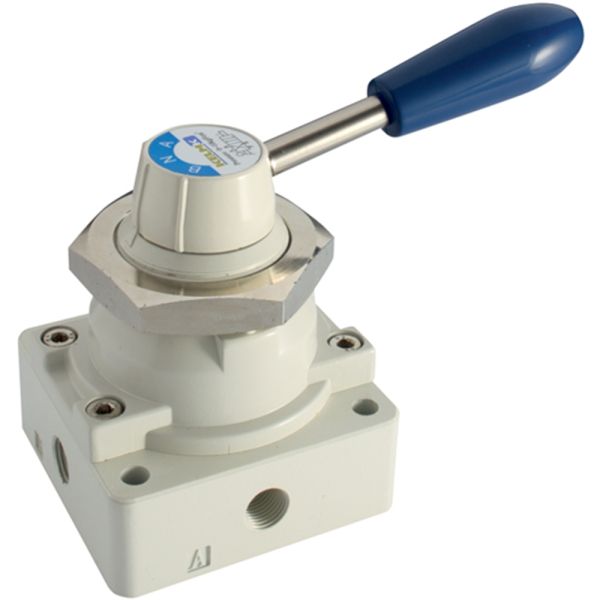

Kelm Lever/Lever BSPP
Useful Information
Key Features / Tech Specs:
- Manufactured by KELM
- Material: Aluminium alloy body, NBR seals
- Max. Pressure: 10 bar
- Operating Temperature: -20°C to 70°C
- BSPP thread
- 4/2 Way
- A - Outlet Port
- B - Outlet Port
- P - Air Input
- R - Exhaust Port
| Product Code | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
| 3----- | 73 | 45 | 1.5 | 1/8" | 11.5 | M34 x 1.5 | 92.5 | 5.5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 3----- | 88.5 | 56 | 1.5 | 1/4" | 13.5 | M40 x 1.5 | 104 | 6.5 | 74 | 62 | 51 | 3 | 62 | 74 | 140 |
| 3----- | 88.5 | 56 | 1.5 | 3/8" | 13.5 | M40 x 1.5 | 104 | 6.5 | 74 | 62 | 51 | 3 | 62 | 74 | 140 |
| 3----- | 110 | 72 | 2 | 1/2" | 18 | M52 x 1.5 | 128 | 6.5 | 102 | 89 | 64 | 3 | 81 | 94 | 160 |
| 3----- | 110 | 72 | 2 | 3/4" | 18 | M52 x 1.5 | 128 | 6.5 | 102 | 89 | 64 | 3 | 81 | 94 | 160 |
Useful Info:
This lever valve is complete with BSPP metric thread with a 14.0mm² orifice and a Cv value of 0.78 on the 1/8" fitting, a 30.0mm² orifice and a Cv value of 1.67 on the 1/4" fitting, an 88.0mm² orifice and a Cv value of 4.89 on the 1/2" fitting and a 95.0mm² orifice with a Cv value of 5.27 on the 3/4" fitting. It is used for the manual control of air flow within pneumatic systems. The air is to be filtered by 40µm filter element.
The lever/lever valve is designed to open the valve when the lever is in the correct position and closed when in the opposite position. The direction change of the lever in use is smooth and exact.
Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 10 bar. They can be mounted on panel or body.
These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
