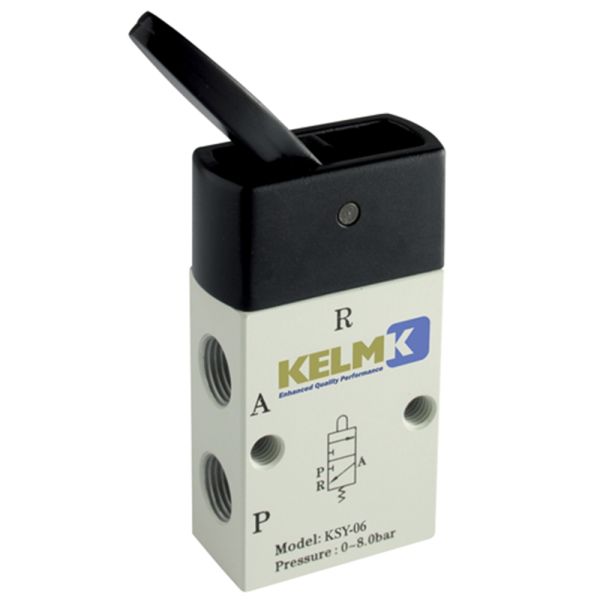

Kelm Lever/Lever BSPP
Useful Information
Key Features / Tech Specs:
- Manufactured by KELM
- Material: Aluminium alloy body, NBR seals
- Max. Pressure: 10 bar
- Operating Temperature: -20°C to 70°C
- 1/8" BSPP thread
- 3/2 Way
- A - Outlet Port
- P - Air Input
- R - Exhaust Port
| A | B | C | D | E | F | G | H | I | J |
| 23 | 30 | 20.5 | 41 | 47 | M5 x 0.8 | 16.5 | 11.5 | 17.5 | 1/8" |
Useful Info:
This lever/lever valve is complete with BSPP thread with an 8.0mm² orifice and a Cv value of 0.45. It is used for the manual control of air flow within pneumatic systems. The air is to be filtered by 40µm filter element.
The lever/lever valve is designed to open the valve when the lever is in the correct position and closed when in the opposite position. It is not spring operated therefore will remain open if left in the open position of the lever.
Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 10 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.
These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
