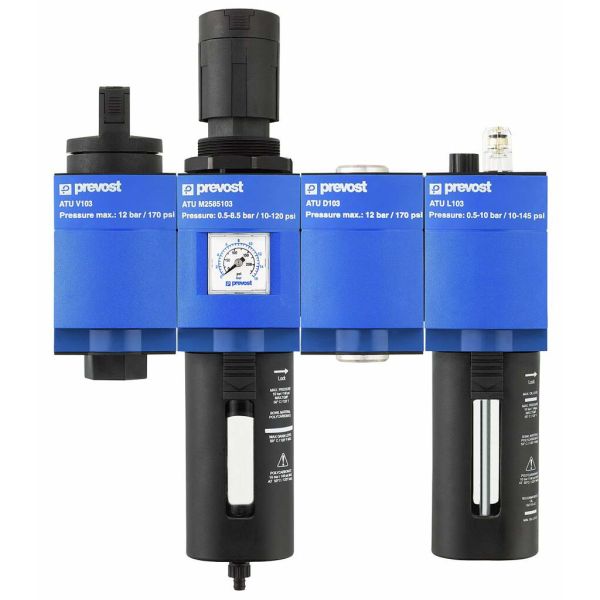

Pevost Valve + Filter Regulator Lubricator + Branching

• Thread Size: G 1/8, G 1/4, G 3/8, G 1/2
• Filtration Options: 25 µm
• Alternative Filters: 1µm (488798) and 5µm (488800)
• Inlet Pressure Range: 0.8 - 10 bar
• Outlet Pressure Range: 0.5 - 8.5 bar
• Lubrication Type: Oil mist injection
• Dry Outlet Feature: Provides non-lubricated air for separate applications
• Operating Temperature: +5°C to 50°C
• Connection Type: BSPP Female Thread
• Material Composition:

           Body - Aluminium
           Tank - Polycarbonate with protective casing
           Adjustment Mechanism - High-precision polymer

• Weight: 0.69 kg, 2.13 kg

This filter-regulator-lubricator (FRL) unit combines four essential pneumatic functions in one compact system: air filtration, pressure regulation, controlled lubrication, and a manual shut-off valve with a dry outlet. It ensures clean, regulated, and lubricated compressed air while also allowing for manual air supply control and a separate dry air outlet for applications requiring moisture-free air. Designed for industrial pneumatic systems, it enhances efficiency, protects equipment, and extends the service life of tools and actuators.

 4-in-1 Functionality – Integrates air filtration, pressure regulation, lubrication, and manual shut-off with a dry outlet in a single unit.
 BSPP Female Thread – Ensures compatibility with standard pneumatic systems.
 High Filtration Efficiency – Removes solid and liquid contaminants for clean and efficient compressed air.
 Precise Pressure Regulation – Maintains a stable and adjustable outlet pressure range.
 Lubrication Control – Supplies a fine oil mist to enhance tool performance and longevity.
 Manual Shut-Off Valve – Enables easy isolation of the air supply for maintenance and safety purposes.
 Dry Air Outlet – Provides a separate outlet for applications requiring moisture-free air.
 High Flow Capacity – Capable of handling up to 3,300 l/min, suitable for high-demand industrial use.
 Durable Construction – Built with high-quality materials for long-term reliability.
 Compact & Lightweight – Optimised for easy installation in pneumatic networks.
 Optimised for Pneumatic Applications – Ideal for air tool supply, automation systems, and compressed air distribution where both lubricated and dry air are required.

This filter-regulator-lubricator with a manual valve and dry outlet is an essential pneumatic component for industries needing clean, controlled, and dual-purpose air supply, enhancing system performance and equipment longevity.
