Prevost Filter

• Operating Pressure Range: 0.8 to 12 bar
• Maximum Service Pressure: 10 bar
• Service Temperature: +5°C to 50°C
• Filter Material: Sintered bronze cartridge
• Filter Options: 25µm
• Alternative Filters: 1µm (488798) and 5µm (488800)
• Housing Material: Aluminium body with polycarbonate bowl
• Drain Type: Manual drain with optional automatic drain
• Weight: 0.19 kg (G 1/8 - G 1/4), 0.65 kg (G 3/8 - G 1/2)

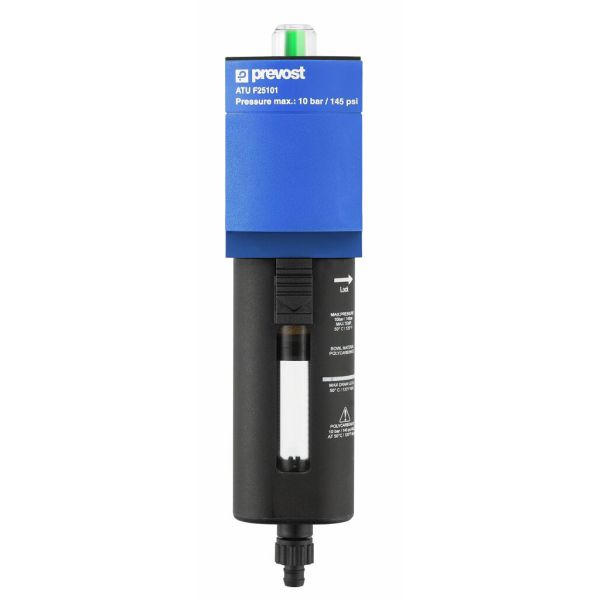

The ATU F25100-F25103 Series Filters provide high-performance compressed air filtration to remove solid particles, moisture, and oil aerosols from pneumatic systems. These filters are equipped with a sintered bronze filter element, ensuring efficient contaminant removal while maintaining optimal airflow.

With female BSPP threads in sizes G 1/8, G 1/4, G 3/8, and G 1/2, these filters are designed for easy integration into pneumatic networks, enhancing system reliability and protecting sensitive downstream equipment from contamination.

•  High-Efficiency Filtration – Removes solid contaminants, moisture, and oil aerosols for clean compressed air.
•  Durable Construction – Aluminium body with a polycarbonate bowl for long service life.
•  Multiple Thread Sizes – Available in G 1/8, G 1/4, G 3/8, and G 1/2 for flexible system integration.
•  Manual & Automatic Drain Options – Efficient removal of collected condensates to prevent clogging.
•  Sintered Bronze Cartridge – Ensures consistent filtration performance and extended filter life.
•  Optimised for Industrial Use – Ideal for pneumatic automation, air tool supply, and compressed air systems.
•  Clog Indicator – Alerts when the filter cartridge requires replacement to prevent pressure drops.
•  Bayonet-Type Locking System – Allows quick and easy filter cartridge replacement.

This compressed air filter is an essential component for ensuring clean and efficient airflow in industrial, workshop, and automation environments, extending the lifespan of pneumatic tools and equipment.
