A plain female x threaded male PVC adaptor is a practical fitting designed to add a male BSP thread connection to a plain-ended PVC pipe. This adaptor is ideal for applications where threaded connections are needed, allowing for easy attachment of valves, gauges, or other equipment. The plain female end is solvent-welded to the PVC pipe, while the male threaded end provides a secure connection to standard BSP threaded fittings. This adaptor is commonly used in water distribution, irrigation, and industrial fluid handling systems, providing a reliable transition between solvent-welded and threaded components.
Key Features
Dual Connection Type: Combines a plain female end for solvent welding with a male BSP threaded end, enabling mixed connection methods in a single fitting.
Secure and Leak-Proof: Ensures a strong, leak-free connection, combining the durability of solvent welding with the flexibility of a threaded fitting.
High-Quality Material: Made from unplasticised polyvinyl chloride (PVC-U), providing excellent rigidity, durability, and resistance to corrosion in various applications.
Consistent Pressure Rating: Rated up to 15 bar across all sizes, making it suitable for high-demand installations.
Easy Installation: Plain female end for solvent-welded connections and male threaded end for BSP fittings, ensuring quick adaptability in mixed systems.

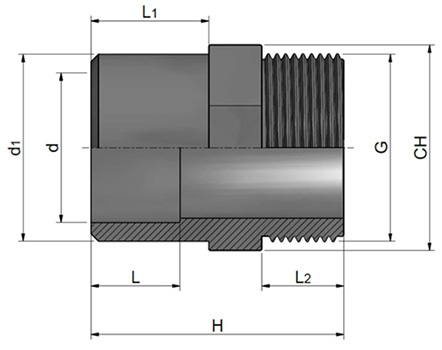

Product Code
Nominal Size (inch)
L1 (mm)
L2 (mm)
L3 (mm)
H (mm)
O (mm)
356431
1/2
17
20
15
46
30
356432
3/4
20
23
16
50
36
356433
1
23
27
19
57
46
356434
1 1/4
27
32
21
67
55
356435
1 1/2
32
39
21
74
65
356436
2
39
44
26
84
80
359769
2 1/2
44
52
30
99
95
356437
3
52
63
33
113
115
356438
4
63
66
39
120
130
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
