3-Way L-Port Durapipe
Technical Specification
Valve
- Manufacturer: Durapipe
- Valve type: TKD DualBlock® 3-way ball valve - L-port
- Configuration: L-port, 4-position operation
- Body material: Acrylonitrile butadiene styrene (ABS)
- Seal material: EPDM
- Connection type: Imperial plain (solvent weld) ends
- Pressure rating: Up to 16 bar at 20°C
- Standards: Manufactured in accordance with BS 5392
- Function: Diverting or mixing flow
Actuator
- Manufacturer: J+J
- Model: J4C-S20 electric actuator
- Supply voltage: 24–240V AC/DC (automatic voltage sensing)
- Maximum operational torque: 20 Nm
- Break torque: 25 Nm
- Operating temperature: -20°C to +70°C
- Operating time: 10 seconds per 90°
- Torque protection: Electronic torque limiter with auto gearbox relaxing
- Manual override: Manual and automatic declutching
- Positioning options:
- 0°–45°–90°
- 0°–90°–180°
- Ingress protection: IP67 fully weatherproof housing
- Drive type: DIN 3337 female star (14 mm)
- Mounting interface: ISO 5211 F03 / F04 / F05
- Electrical connection: DIN plugs
- Approvals: CE marked
- Weight: 1.8 kg
Description

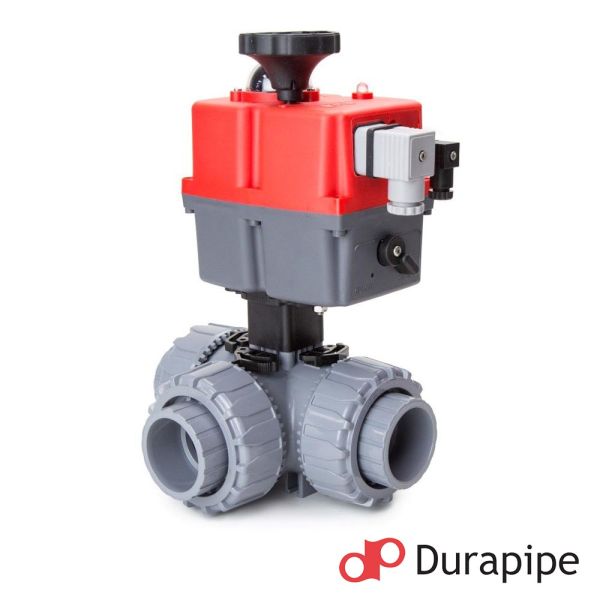

The 3-Way L-Port Durapipe ABS Electric Actuated Ball Valve is a factory-assembled flow control solution designed for automated diverting or mixing applications within ABS pipework systems. Based around the proven Durapipe TKD DualBlock® 3-way valve and paired with a J+J electric actuator, this assembly delivers reliable, repeatable operation in demanding industrial environments.
The L-port ball configuration provides four distinct operating positions, allowing controlled redirection of flow between ports. Fully unionised construction enables the valve body to be removed for maintenance or seal replacement without disturbing the surrounding pipework, while EPDM seals ensure excellent compatibility with water and a wide range of process fluids.
The J+J J4C-S20 quarter-turn actuator offers wide voltage compatibility, IP67 weather protection and electronic torque limiting for safe operation. A built-in manual override and LED status indication simplify commissioning and ongoing operation.
Key Features & Benefits
- Factory-assembled and tested: Supplied ready for installation
- L-port 3-way configuration: Ideal for diverting or mixing duties
- Durapipe TKD DualBlock® valve: Proven performance in industrial ABS systems
- Unionised valve design: Simplifies servicing without cutting pipework
- EPDM seals: Suitable for potable water and many industrial fluids
- Wide voltage actuator: Single unit covers 24-240V AC/DC supplies
- IP67 actuator enclosure: Suitable for indoor and outdoor use
- Electronic torque protection: Prevents damage during operation
- Manual override included: Allows local control during setup or power loss
