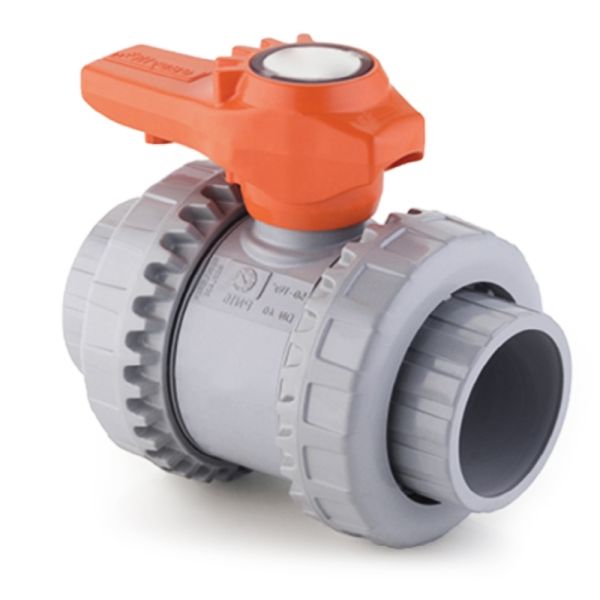

VXE DU Ball Valve EPDM
Useful Information
ABS solvent cement required for joining this product with other ABS systems.
Union Fittings allow for easy maintenance of the valve without the need for additional gluing.
Â
| Body Material | ABS |
| Seal Material | EPDM |
| Sizes | 20mm to 63mm |
| Pressure Rating | 16 bar |
Â
| Product Code | Nominal Size (mm) | L (mm) | z (mm) | H (mm) | E (mm) | B (mm) | C (mm) | C1 (mm) |
| 369271 | 20 | 16.5 | 49 | 82 | 54 | 49 | 64 | 20 |
| 369272 | 25 | 19 | 53 | 91 | 63 | 62 | 78 | 23 |
| 369273 | 32 | 22.5 | 58 | 103 | 72 | 71 | 87 | 27 |
| 369274 | 40 | 26 | 68 | 120 | 85 | 82 | 102 | 30 |
| 369275 | 50 | 30 | 79 | 139 | 100 | 92 | 109 | 33 |
| 369276 | 63 | 36 | 102 | 174 | 118 | 110 | 133 | 39 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
