ABS Reducing Bush Threaded M x F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Our ABS reducing bush threaded M x F fittings are available in sizes 3/4" x 1/2" to 4" x 3".

Used to convert from a larger ABS threaded fitting to a smaller fitting.

Threads included in this fitting are standard BSP.

Approvals:

BSI Kitemark approved

Licence number KM60042

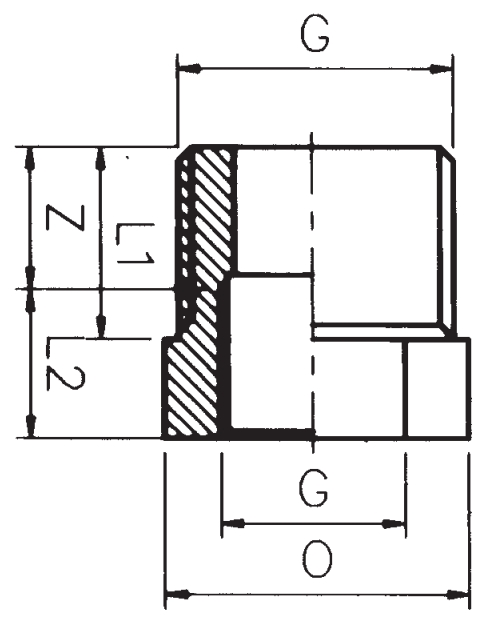

ABS-threaded-reducing-bush-Diagram

Product Code	D1 (inch)	D2 (inch)	L1 (mm)	L2 (mm)	Z (mm)	O (mm)
353228	3/4	1/2	16	15	13	30
353229	1	3/4	19	16	14	36
353230	1 1/4	1	21	19	16	46
353231	1 1/2	1 1/4	21	21	14	55
353232	2	1 1/2	25	21	18	65
353233	2 1/2	2	30	25	20	80
353234	3	2 1/2	33	30	20	95
353235	4	3	39	33	24	120

IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
353228	ABS Reducing Bush Threaded 3/4" x 1/2"	£12.79	77%	£2.94
353229	ABS Reducing Bush Threaded 1" x 3/4"	£15.56	77%	£3.58
353230	ABS Reducing Bush Threaded 1 1/4" x 1"	£39.88	77%	£9.17
353231	ABS Reducing Bush Threaded 1 1/2"x 1 1/4"	£40.62	77%	£9.34
353232	ABS Reducing Bush Threaded 2" x 1 1/2"	£45.33	77%	£10.43
353233	ABS Reducing Bush Threaded 2 1/2" x 2"	£52.93	77%	£12.17
353234	ABS Reducing Bush Threaded 3" x 2 1/2"	£89.05	77%	£20.48
353235	ABS Reducing Bush Threaded 4"x 3"	£93.49	77%	£21.50
