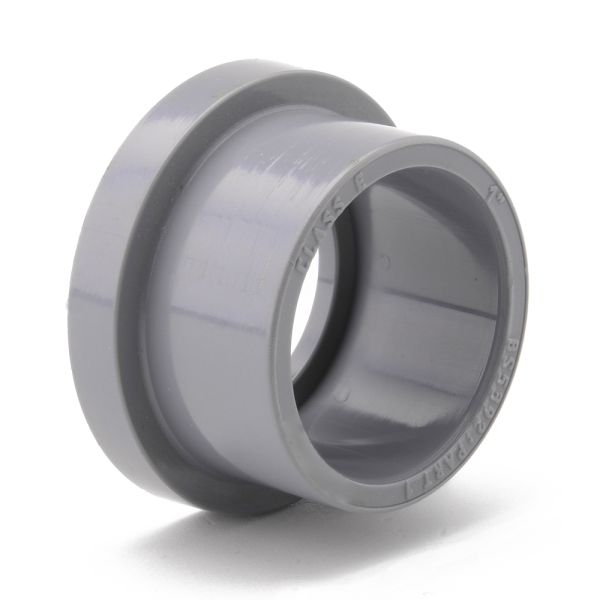

ABS Metric Stub Flange
Useful Information
Our ABS metric stub flanges are available in sizes 16mm to 315mm.
Flange body made from acrylonitrile butadiene styrene (ABS).
This stub flange has a plain serrated face.
In order to join two lengths of ABS pipe, stub flanges should be used with two backing rings, one stub gasket and the relevant nuts and bolts.
The ends of the stub flange should be solvent welded to the pipe using ABS solvent cement.
Â
Â
| Product Code | Nominal Size (mm) | A (mm) | B (mm) | D (mm) | Z1 (mm) | PN |
| 369197 | 16 | 29 | 17 | 6 | 3 | 10 |
| 369198 | 20 | 34 | 20 | 6 | 3 | 10 |
| 369199 | 25 | 41 | 22 | 7 | 3 | 10 |
| 369200 | 32 | 50 | 26 | 7 | 3 | 10 |
| 369201 | 40 | 61 | 30 | 8 | 3 | 10 |
| 369202 | 50 | 73 | 35 | 8 | 3 | 10 |
| 369203 | 63 | 90 | 42 | 9 | 4 | 10 |
| 369204 | 75 | 106 | 49 | 10 | 4 | 10 |
| 369205 | 90 | 125 | 59 | 11 | 6 | 10 |
| 369206 | 110 | 149 | 68 | 12 | 6 | 10 |
| 369207 | 125 | 165 | 76 | 13 | 5 | 10 |
| 369208 | 140 | 180 | 83 | 14 | 7 | 10 |
| 369209 | 160 | 205 | 93 | 16 | 5 | 10 |
| 369210 | 200 | 252 | 114 | 17 | 6 | 10 |
| 369211 | 225 | 273 | 126 | 24 | 6 | 10 |
| 369212 | 250 | 306 | 140 | 20 | 9 | 10 |
| 369213 | 315 | 375 | 180 | 32 | 14 | 10 |
Â
