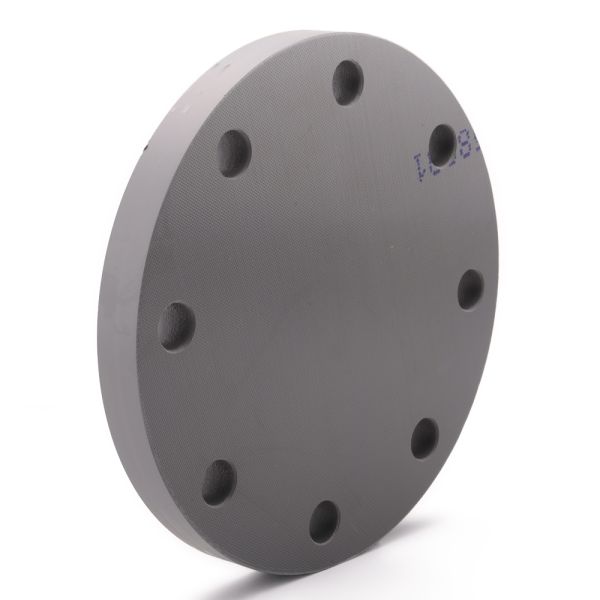

ABS Metric Blanking Flange EN1029
Useful Information
Our ABS metric blanking flanges are available in sizes 32mm to 160mm.
Flange body made from acrylonitrile butadiene styrene (ABS).
This blanking flange has been drilled to BS EN1092-1.
These flanges are rated to PN16.
A blanking flange is used with bolts to blank off a section of pipework. ABS solvent cement should be used for connecting the flange and pipe together.
Â
Â
| Product Code | Nominal Size (mm) | A (mm) | B (mm) | PCD (mm) | Hole Diameter (mm) | No of holes |
| 350168 | 32 | 116 | 13 | 85 | 14 | 4 |
| 350169 | 40 | 141 | 13 | 100 | 18 | 4 |
| 350170 | 50 | 153 | 13 | 110 | 18.5 | 4 |
| 350171 | 63 | 166 | 19 | 124 | 18 | 4 |
| 350172 | 75 | 186 | 19 | 145 | 18.5 | 4 |
| 350173 | 90 | 201 | 19 | 159 | 18 | 8 |
| 350174 | 110 | 221 | 26 | 180 | 18 | 8 |
| 369214 | 125 | 251 | 26 | 210 | 18 | 8 |
| 369215 | 140 | 251 | 26 | 210 | 18 | 8 |
| 369216 | 160 | 286 | 27 | 240 | 23 | 8 |
Â
IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
