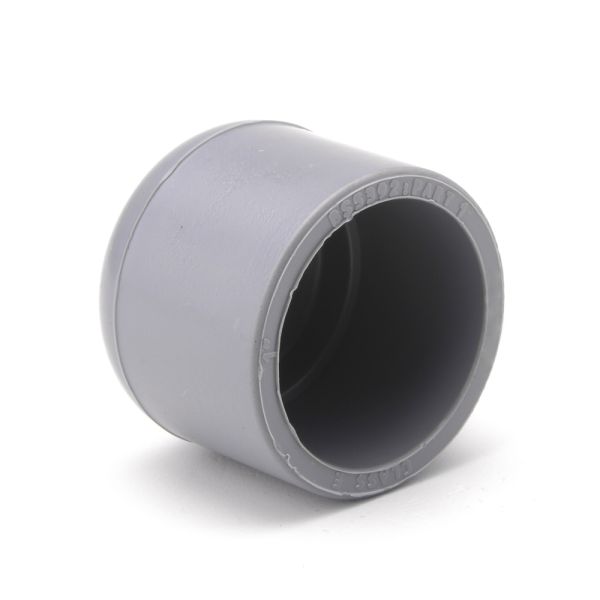

ABS Metric End Cap Plain
Useful Information
Our ABS metric end cap plain fittings are available in sizes 16mm to 110mm.
Fitting body made from acrylonitrile butadiene styrene (ABS).
Used to cap a piece of ABS metric pipe of the same dimension. ABS solvent cement should be used along with cleaner to glue the pipe together.
Â
Approvals:
 |
WRAS approval 1703070 (where applicable) |
Â
Â
| Product Code | Nominal Size (mm) | A (mm) | B (mm) | Fig | PN |
| 369122 | 16 | 21 | 16 | 1 | 10 |
| 369123 | 20 | 25 | 21 | 1 | 10 |
| 369124 | 25 | 31 | 24 | 1 | 10 |
| 369125 | 32 | 41 | 30 | 1 | 10 |
| 369126 | 40 | 50 | 35 | 1 | 10 |
| 369127 | 50 | 62 | 41 | 1 | 10 |
| 369128 | 63 | 78 | 50 | 1 | 10 |
| 369129 | 75 | 94 | 59 | 1 | 10 |
| 369130 | 90 | 112 | 70 | 1 | 10 |
| 369131 | 110 | 136 | 84 | 1 | 10 |
Â
IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
