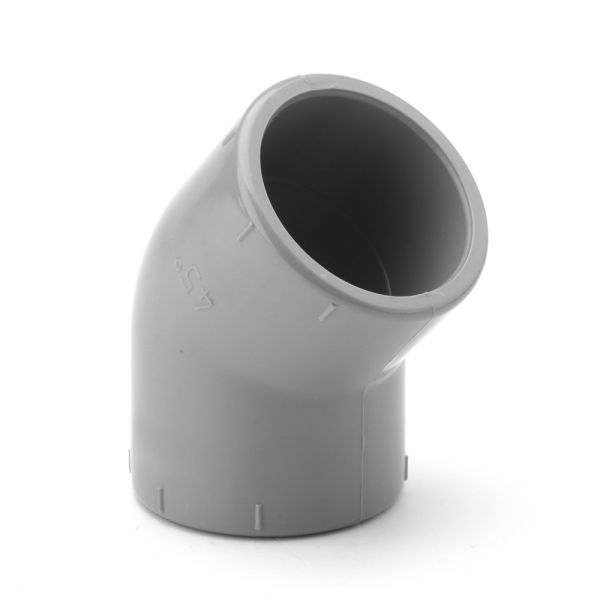

ABS Metric Elbow 45° Plain

Loading...
Useful Information

Our ABS metric elbow 45 plain fittings are available in sizes 16mm to 315mm.

Fitting body made from acrylonitrile butadiene styrene (ABS).

Used to join together two pieces of ABS pipe of the same dimensions at an angle of 45°. ABS solvent cement should be used along with cleaner to glue the pipe together.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)



ABS-Elbow-45-Diagram


Product Code Nominal Size (mm) A (mm) C (mm) Z1 (mm) PN
369024 16 21 20 5 10
369025 20 25 22 5 10
369026 25 31 26 7 10
369027 32 40 31 8 10
369028 40 50 37 10 10
369029 50 62 45 13 10
369030 63 82 54 16 10
369031 75 90 63 17 10
369032 90 112 70 18 10
369033 110 137 90 27 10
369034 125 155 103 31 10
369035 140 173 115 37 10
369036 160 190 125 35 10
369037 200 235 149 43 10
369038 225 262 167 46 10
369039 250 286 189 58 10
369040 315 359 230 66 8



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
369024DP ABS Elbow 45 Plain 16mm £10.81 30%
£7.56
369025DP ABS Elbow 45 Plain 20mm £12.38 30%
£8.67
369026DP ABS Elbow 45 Plain 25mm £12.60 30%
£8.82
369027DP ABS Elbow 45 Plain 32mm £15.73 30%
£11.01
369028DP ABS Elbow 45 Plain 40mm £23.10 30%
£16.17
369029DP ABS Elbow 45 Plain 50mm £28.62 30%
£20.04
369030DP ABS Elbow 45 Plain 63mm £39.74 30%
£27.82
369031DP ABS Elbow 45 Plain 2 1/2" or 75mm £62.80 30%
£43.96
369032DP ABS Elbow 45 Plain 90mm £93.61 30%
£65.53
369033DP ABS Elbow 45 Plain 110mm £193.96 30%
£135.77
369034DP ABS Elbow 45 Plain 125mm £294.88 30%
£206.41
369035DP ABS Elbow 45 Plain 5" or 140mm £329.45 30%
£230.61
369036DP ABS Elbow 45 Plain 160mm £402.12 30%
£281.48
369037DP ABS Elbow 45 Plain 200mm £715.74 30%
£501.02
369038DP ABS Elbow 45 Plain 225mm £885.78 30%
£620.05
369039DP ABS Elbow 45 Plain 250mm £1,121.62 30%
£785.13
369040DP ABS Elbow 45 Plain 315mm £2,057.55 30%
£1,440.29
