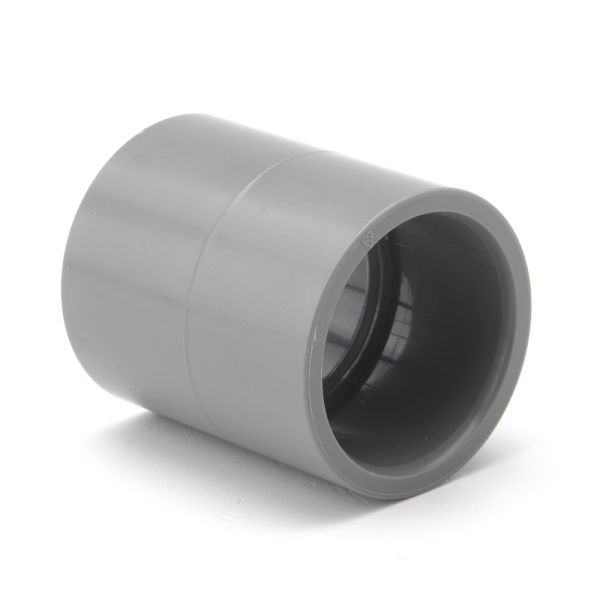

ABS Metric Socket Plain

Skip to the beginning of the images gallery

Useful Information

Our metric ABS sockets plain fittings are available in sizes 16mm to 315mm.

These fittings are made from acrylonitrile butadiene styrene (ABS).

Used to join together two pieces of ABS metric pipe of the same dimensions. ABS solvent cement should be used along with cleaner to glue the pipe together.

Approvals:

WRAS approval 1703088 (where applicable)

ABS-Socket-Diagram

Product Code	Nominal Size (mm)	A (mm)	B (mm)	Z₁ (mm)	PN
368966	16	21	31	3	10
368967	20	25	37	3	10
368968	25	31	42	2	10
368969	32	41	49	3	10
368970	40	50	58	4	10
368971	50	62	68	4	10
368972	63	78	81	4	10
368973	75	88	93	3	10
368974	90	107	108	4	10
368975	110	126	131	7	10
368976	125	146	149	7	10
368977	140	171	163	7	10
368978	160	182	184	8	10
368979	200	223	220	8	10
368980	225	260	250	11	10
368981	250	286	272	10	10
368982	315	355	339	11	8

IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
368966	DP ABS Socket Plain 16mm	£4.36	30%	£3.05
368967	DP ABS Socket Plain 20mm	£4.75	30%	£3.33
368968	DP ABS Socket Plain 25mm	£5.36	30%	£3.75
368969	DP ABS Socket Plain 32mm	£6.17	30%	£4.32
368970	DP ABS Socket Plain 40mm	£10.81	30%	£7.56
368971	DP ABS Socket Plain 50mm	£12.98	30%	£9.09
368972	DP ABS Socket Plain 63mm	£18.19	30%	£12.74
368973	DP ABS Socket Plain 2 1/2" or 75mm	£39.74	30%	£27.82
368974	DP ABS Socket Plain 90mm	£73.29	30%	£51.30
368975	DP ABS Socket Plain 110mm	£103.98	30%	£72.78
368976	DP ABS Socket Plain 125mm	£165.05	30%	£115.53
368977	DP ABS Socket Plain 5" or 140mm	£203.83	30%	£142.68
368978	DP ABS Socket Plain 160mm	£259.86	30%	£181.90
368979	DP ABS Socket Plain 200mm	£449.44	30%	£314.61
368980	DP ABS Socket Plain 225mm	£499.36	30%	£349.55
368981	DP ABS Socket Plain 250mm	£904.95	30%	£633.46
368982	DP ABS Socket Plain 315mm	£1,284.60	30%	£899.22
